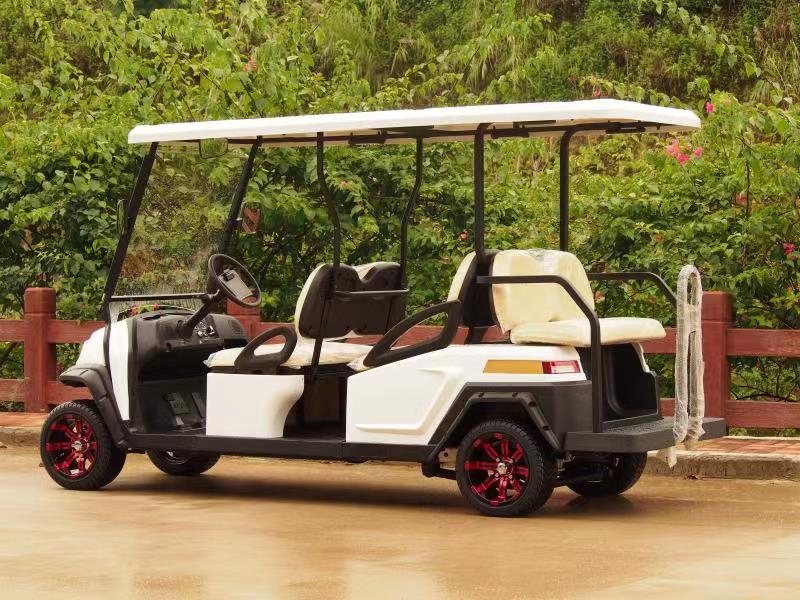

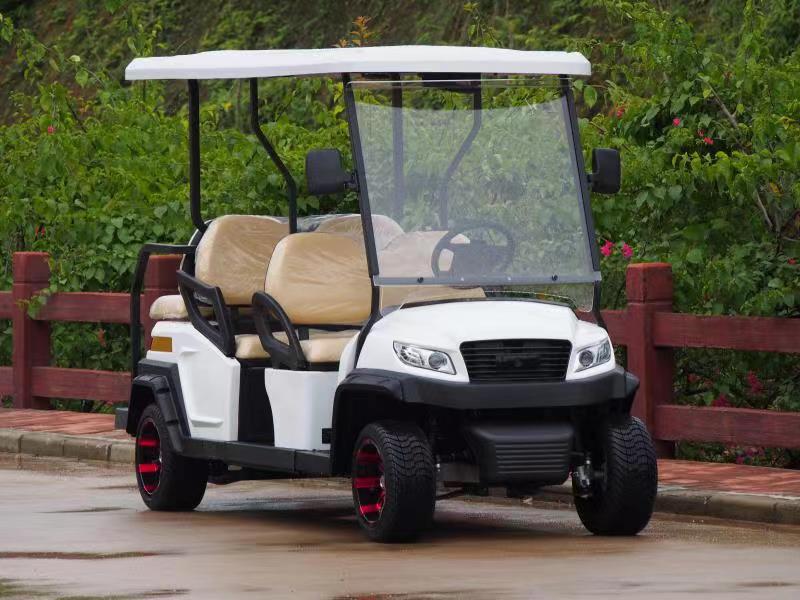

48 Voltage Golf Electric Car 350A Controlller 3.7KW USA Motor CE Certificate
Product Name:
48 Voltage Golf Electric Car 350A Controlller 3.7KW USA Motor CE CertificateModel No.:
M1S4+2Price:
￥0.00
Product Abstract:
48 Voltage Golf Electric Car 350A Controlller 3.7KW USA Motor CE Certificate
- Product Description
Detailed Product Description
Framework: Steel Body: All Engineering Plastic Batteries: Lead-acid Wet Batteries USA Trojan Batteries Controller: USA Curtis Controller 48V 275A Rear Suspension: Coil Spring Hydraulic Shock Absorber Motor: ADC Separately Excited 48V 3.7w Max.speed: 25km/h Or 45km/h Charging Time: 8-10 Hours Dimension: 3500*1200*1800mm Net Weight: 560kgs Turning Radius: 3.9m High Light: golf club car
,4 seater golf car
350A Controlller 3.7KW USA Motor Electric Fuel Type Golf Car 48 voltage electrical golf car with CE certificate
Basic specification
Item Description Brand Excar Model M1S4+2 Overall dimensions (L x W x H) 3500x1200x1800mm Ground clearance 150mm Wheelbase 2490mm Front wheel tread (mm) 860mm Rear wheel tread (mm) 970mm Key Components
System DC system AC system Controller Curtis controller 1266A-5301, 350A, imported from USA directly Curtis controller 1234E-5321, 350A, imported from USA directly Motor ADC brand Separately excited
DC motor 48V 3.7kw
ADC brand Separately excited
AC motor 48V 3kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly Transaxle Italian GRAZIANO axle
with gear ration 1:12
Italian GRAZIANO axle
with gear ration 1:16
Charger High Frequency onboard charger
48V/17A regulator
High Frequency onboard charger
48V/17A regulator
Performance
system DC system AC system Passenger Capacity 6 6 Climbing capacity(full load) 20% 25% Max. forward speed 23km/h 45km/h Endurance mileage 60-80km 80-100km Charging time 8-10 hours 8-10 hours Max. loading weight 300kgs 300kgs Min. turning radius 3.9m 3.9m Max. movement after brake at speed of 20km/h ≤4m ≤4m Steering & suspersion
Item Description Steering System Self-adjusting rack and pinion steering system,
with automatic compensation function
Brake System Rear wheel mechanical brake Accelerator Holzer type, stepless speed change Front suspension Mcpherson independent spring suspension Rear suspension Coil spring hydraulic shock absorber Driving model Rear axle two stage deceleration, motor direct driving Wheel & Tyre Aluminum wheel & USA Carlisle 18*8.5-8 6 layers Option Accessories
Item Option description Item Option description 1 E-key 11 2-point seatbelt 2 Hinged windshield 12 Battery water refill system 3 Laminated windshield with wiper 13 Digital meter 4 Steel brush guard 14 EM brake 5 Front steel basket 15 Four wheel disc brake 6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel 7 Side rear view mirror 17 Ice box 8 Enclosure 18 Sand bottle 9 Sunshine cover 19 Sand rake 10 Golf bag cover 20 Ball washer Packing & Shipping
Model Dimension(mm) 20” container 40” container M1S4+2 With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield 3500*1200*1800 3500*1200*1450 2 units 4units 6units 12units Detailed Product Description
Framework: Steel Body: All Engineering Plastic Batteries: Lead-acid Wet Batteries USA Trojan Batteries Controller: USA Curtis Controller 48V 275A Rear Suspension: Coil Spring Hydraulic Shock Absorber Motor: ADC Separately Excited 48V 3.7w Max.speed: 25km/h Or 45km/h Charging Time: 8-10 Hours Dimension: 3500*1200*1800mm Net Weight: 560kgs Turning Radius: 3.9m High Light: golf club car
,4 seater golf car
350A Controlller 3.7KW USA Motor Electric Fuel Type Golf Car 48 voltage electrical golf car with CE certificate
Basic specification
Item Description Brand Excar Model M1S4+2 Overall dimensions (L x W x H) 3500x1200x1800mm Ground clearance 150mm Wheelbase 2490mm Front wheel tread (mm) 860mm Rear wheel tread (mm) 970mm Key Components
System DC system AC system Controller Curtis controller 1266A-5301, 350A, imported from USA directly Curtis controller 1234E-5321, 350A, imported from USA directly Motor ADC brand Separately excited
DC motor 48V 3.7kw
ADC brand Separately excited
AC motor 48V 3kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly Transaxle Italian GRAZIANO axle
with gear ration 1:12
Italian GRAZIANO axle
with gear ration 1:16
Charger High Frequency onboard charger
48V/17A regulator
High Frequency onboard charger
48V/17A regulator
Performance
system DC system AC system Passenger Capacity 6 6 Climbing capacity(full load) 20% 25% Max. forward speed 23km/h 45km/h Endurance mileage 60-80km 80-100km Charging time 8-10 hours 8-10 hours Max. loading weight 300kgs 300kgs Min. turning radius 3.9m 3.9m Max. movement after brake at speed of 20km/h ≤4m ≤4m Steering & suspersion
Item Description Steering System Self-adjusting rack and pinion steering system,
with automatic compensation function
Brake System Rear wheel mechanical brake Accelerator Holzer type, stepless speed change Front suspension Mcpherson independent spring suspension Rear suspension Coil spring hydraulic shock absorber Driving model Rear axle two stage deceleration, motor direct driving Wheel & Tyre Aluminum wheel & USA Carlisle 18*8.5-8 6 layers Option Accessories
Item Option description Item Option description 1 E-key 11 2-point seatbelt 2 Hinged windshield 12 Battery water refill system 3 Laminated windshield with wiper 13 Digital meter 4 Steel brush guard 14 EM brake 5 Front steel basket 15 Four wheel disc brake 6 Inner rear view mirror 16 Carlisle 205/50-10 tyre with10inch wheel 7 Side rear view mirror 17 Ice box 8 Enclosure 18 Sand bottle 9 Sunshine cover 19 Sand rake 10 Golf bag cover 20 Ball washer Packing & Shipping
Model Dimension(mm) 20” container 40” container M1S4+2 With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield With roof & windshield Without roof & windshield 3500*1200*1800 3500*1200*1450 2 units 4units 6units 12units
